2 Solar Panel Mounting kit with 300mm Micro channels

1,470

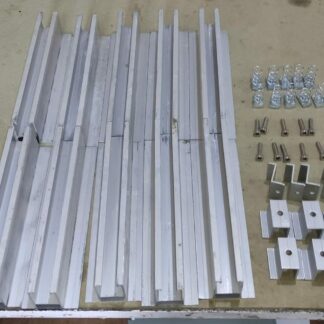

Mounting kit Package includes following products:
1. Micro channel 300x30x35mm x 6 nos
2.Spring nut x 6 nos
3.35mm end clamps x 4 nos
4. Middle clamps x 2 nos
5.Allen bolt 30MM x 6 nos

9 in stock

SKU: KIT2-SUR-300MM Category:

Description

300MM micro channels are suitable for the roof with ridges. see the picture.

6,900 Tin Roof Stock Photos, Pictures & Royalty-Free Images - iStock

Mounting kit Package includes following products:
1. Micro channel 30x35mmx300mm x 6 nos — it has hole in the sides for fastening with self threaded screw
2.Spring nut x 6 nos
3.35mm end clamps x 4 nos
4. Middle clamps x 2 nos
5.Allen bolt 30MM x 6 nos

Steps for TIN roof solar panel mounting.

Step 1: Fix the micro channels on the TIN roof with self-threading screws or bolt-nuts. One micro channel for each corner of the panel.

Micro channel 30x35mmx150mm x 6 nos

Step 2: Insert the Spring nut in to the groove of the micro channel.

Spring nut x 6 nos

Step 3: Fit the 2 middle clamps for the center micro channel spring nuts and fastening to the panel frame on both sides

Step 4: Fit the end clamps for each end of the panel fastening to the panel frame.

35mm x 4 nos

Step 5: Fasten the Allen bot to the Spring nut

Allen bolt 30MM x 6 nos



When to choose 300MM instead of 150MM micro channels?

Video for fitting the panels on TIN roof: https://www.youtube.com/watch?v=bnCAv-HgsPs
