SuRCLe Solar HYBRID ACDB 1P 8kVA with Changeover



Description

ACDB: AC Distribution Box, AC Junction Box



The ACDB (Alternative Current Distribution Box) receives the AC power from the solar inverter and directs it to AC loads through the distribution board. ACDB includes necessary surge protection device (SPD) and MCB to protect the solar inverter from any type of damage or heavy voltage. Specifications of ACDB may change as per load or inverter capacity.

• Provides over current and surge protection
• Indicator provides an easy indication of inverter operation and EB availability.

TECHNICAL SPECIFICATIONS of ACDB:

1	Ambient	-10 to 60 Degree C
2	Type of Enclosure	IP67 Polycarbonate Material
3	Inputs/Outputs	Wire glands
4	AC Switching	MCB Based AC Disconnection
5	Surge Protection	AC SPD Type 2
6	Box / Top Cover	Transparent Top enclosure

ACDB components:

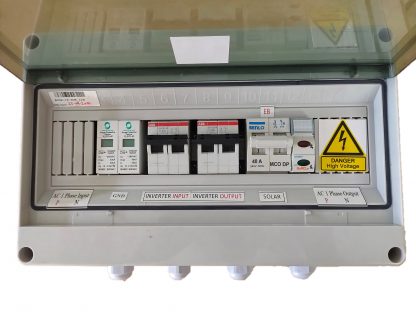

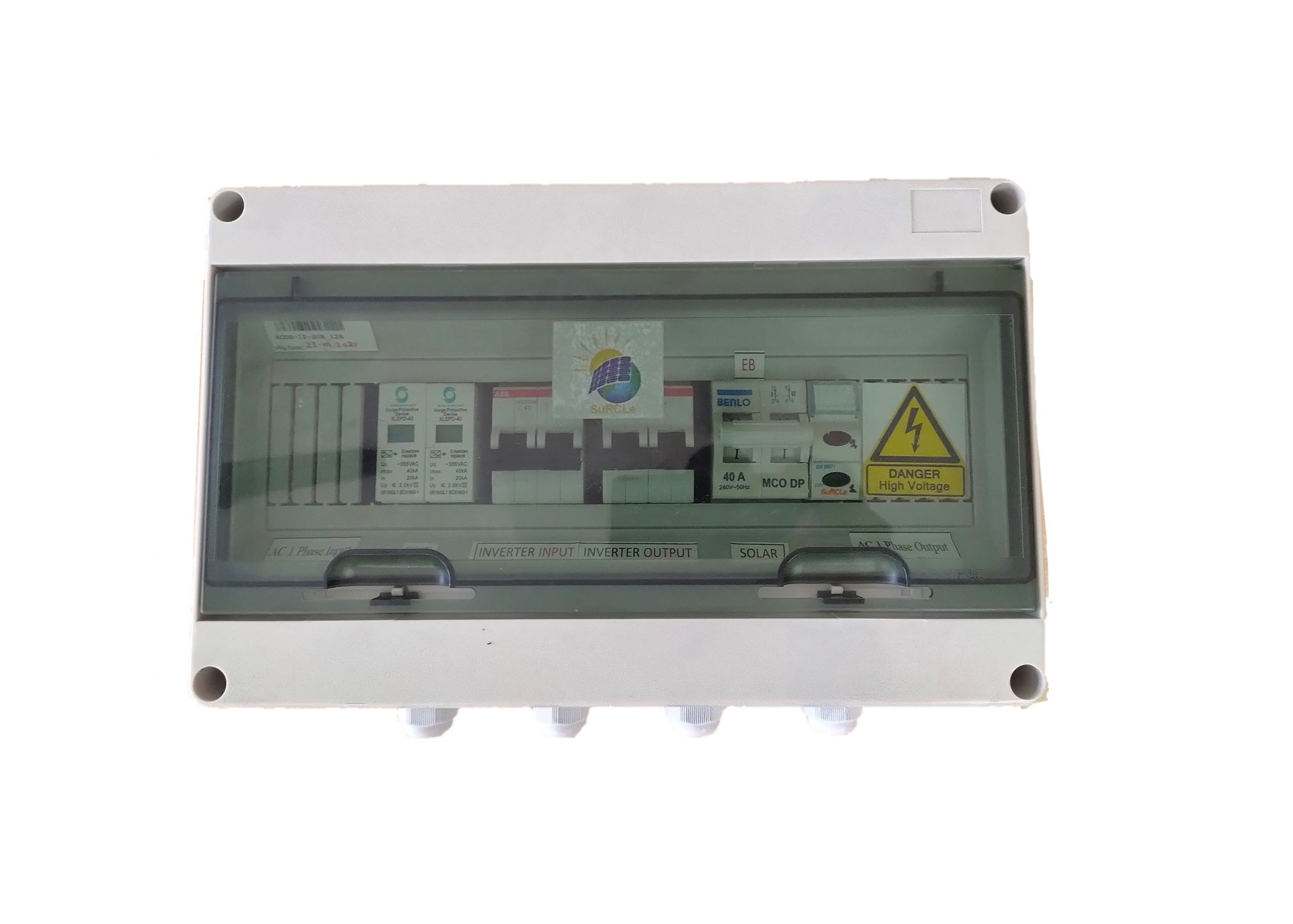

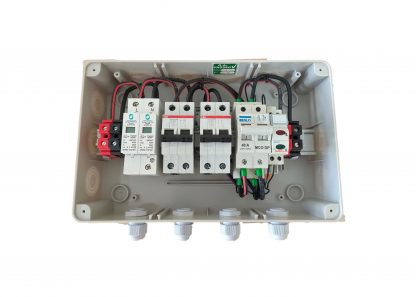

Box: 310*195*110 mm Enclosure with flip open door.

2P 40kA AC SPD: 1 No. – For Surge voltage protection

2P 40A AC MCB: 1No. and 2P 32A AC MCB: 1No – For over current and short circuit protection

40A MCB type changeover: 1 No. – Allows switching between solar inverter and grid for connecting to the load. Suited for easier operational maintenance.

Connectwell connectors

Dual Supply Indicator for grid and solar inverter output.
