Description
Basic Info.

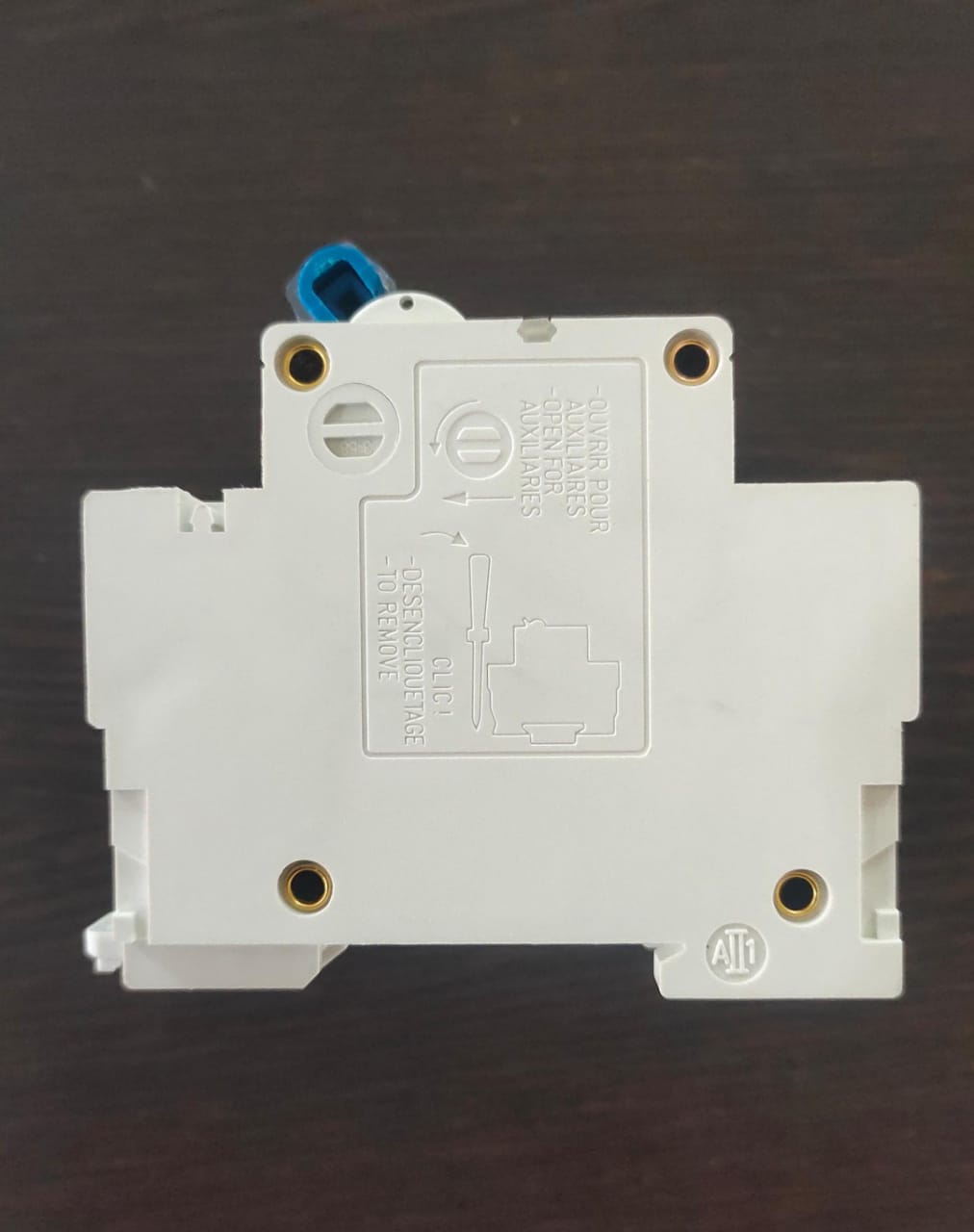

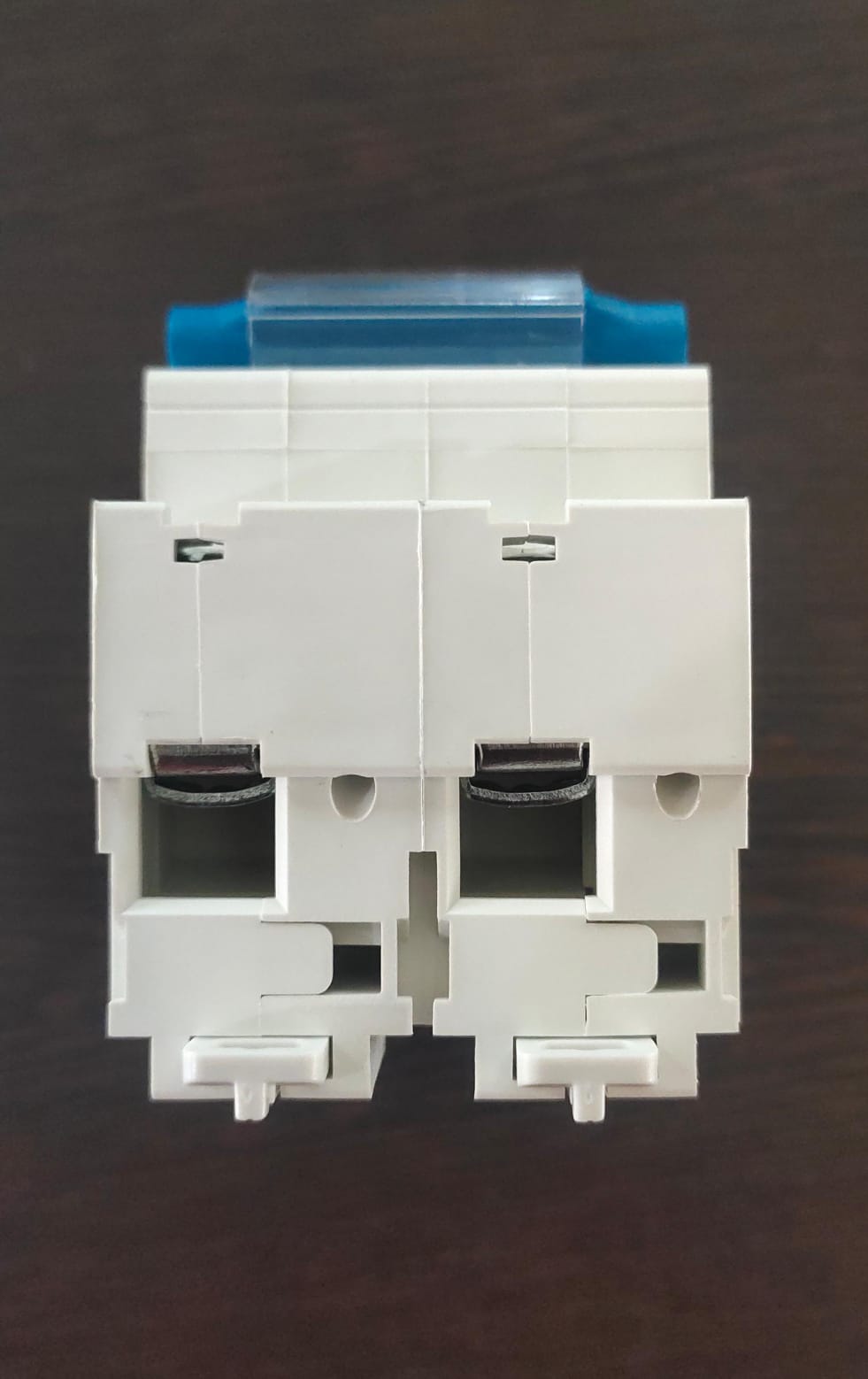

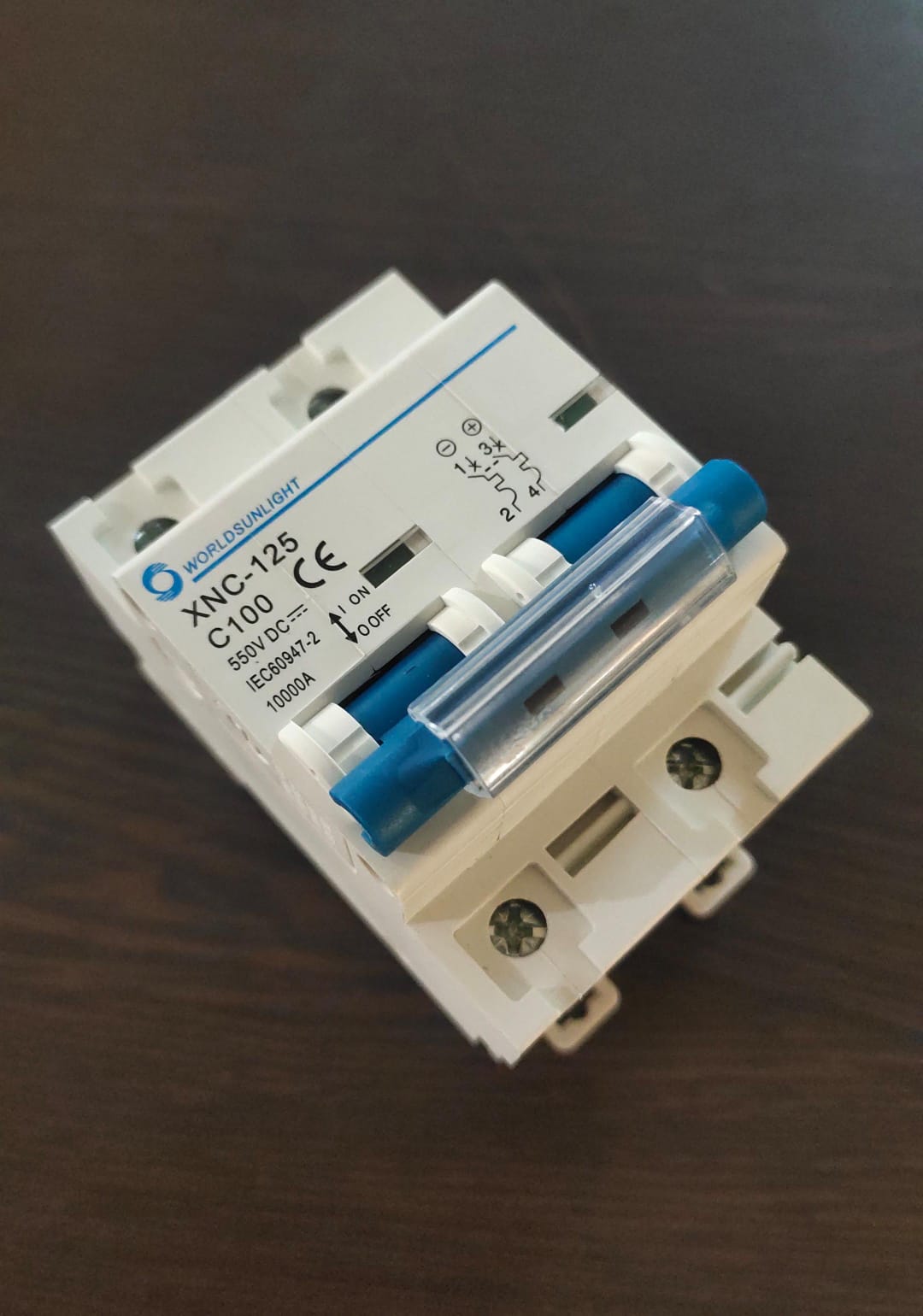

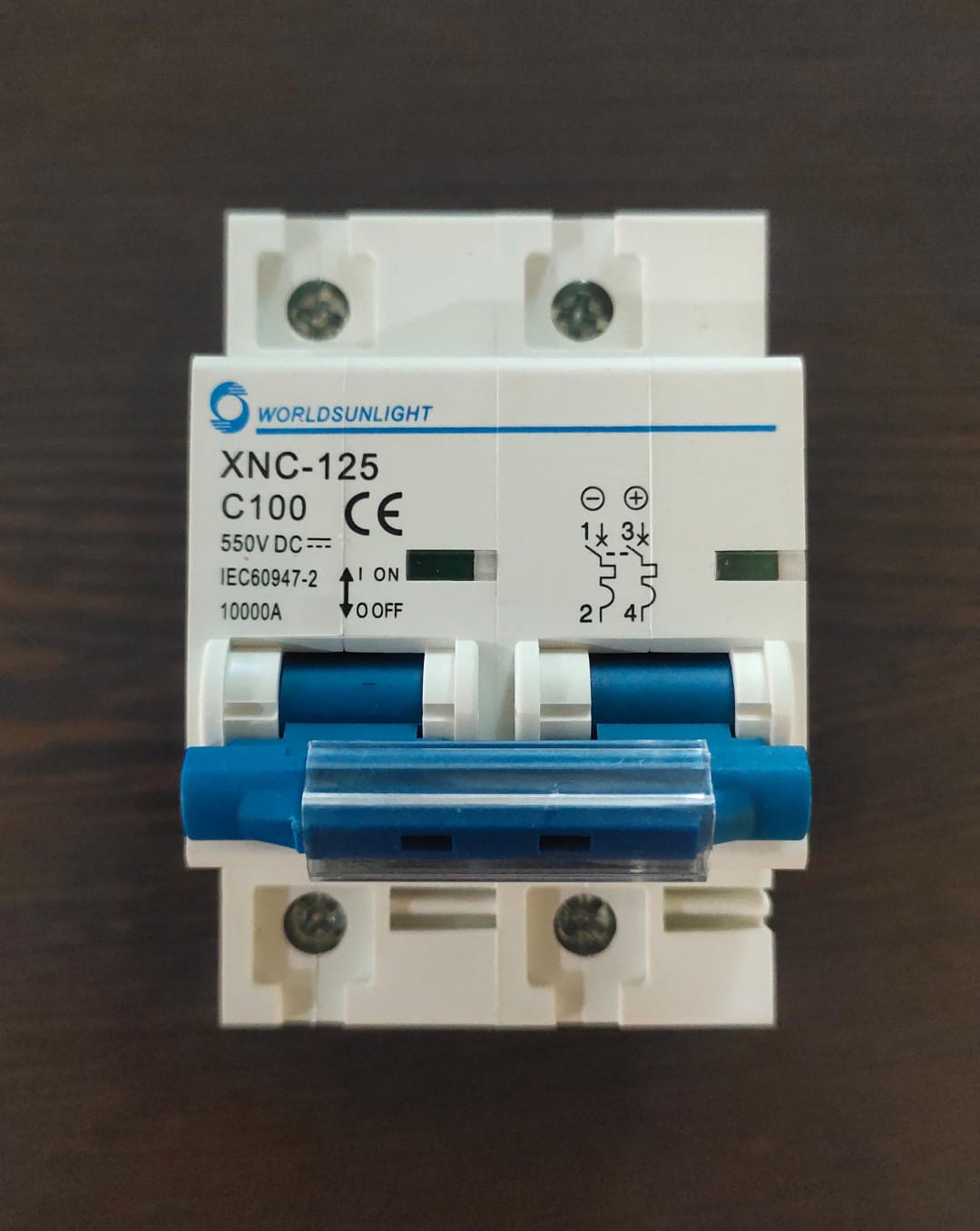

Model NO. – XNC-125
Arc-extinguishing Medium – Air
Type – Circuit Breaker
Certification – ISO9001-2000, CE, SAA
Voltage – 550VDC
Rated Breaking Capacity – 10ka
Certificate – CE/ISO9001/IEC/SAA
Mechanical Life – 10000 Time
Installation – DIN Rail
Function – Circuit-Breaker Failure Protection, Overcurrent Protection
Current – 80A 100A 125A
Standard – IEC/En60947-2
Material – Fireproof Material
Origin – China
DC MCBÂ Application:
XNC-125 Solar system DC MCB,apply to rating current 125A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
FAQs:
1. In which conditions it is most preferable?
For Safe switching under load. In case of faults or maintenance work, individual strings can be safely and selectively switched under load.
2. How will it act under overload conditions?
This MCB will protect your appliances automatically by tripping when overload and a short circuit occur.
3. Is this a certified product?
Yes, WS MCBs are CE certified.
4. Is input on the top or bottom?
This MCB can be used with input on the top or bottom. Other side is used for output.
| Rated Current | 63,80,100,125A | |||
| Rated Voltage | 250VDC | 550V/80OVDC | 750VDC | 10OOVDC |
| No.of Pole | 1P | 2P | 3P | 4P |
| Mechanical Life | 20000 times(C.O.) | |||
| Electrical Life | 20000 times(C.O.) | 125A:10O0 Times | ||
| lcu: | 10KA | |||
| lcs: | 63,80,10OA:10KA | 125A: 7.5KA | ||
| Weight(G) | 150 | 300 | 460 | 620 |
