5 Solar Panel mounting kit with 100x300mm Micro channels

Description

1 foot Micro channels are ideal for TIN roofs with ridges. See the picture.

If you need to mount 10 panels in a single row – you will need:

1. 1 no End panel mounting kit
2. 8 no Middle panel mounting kit

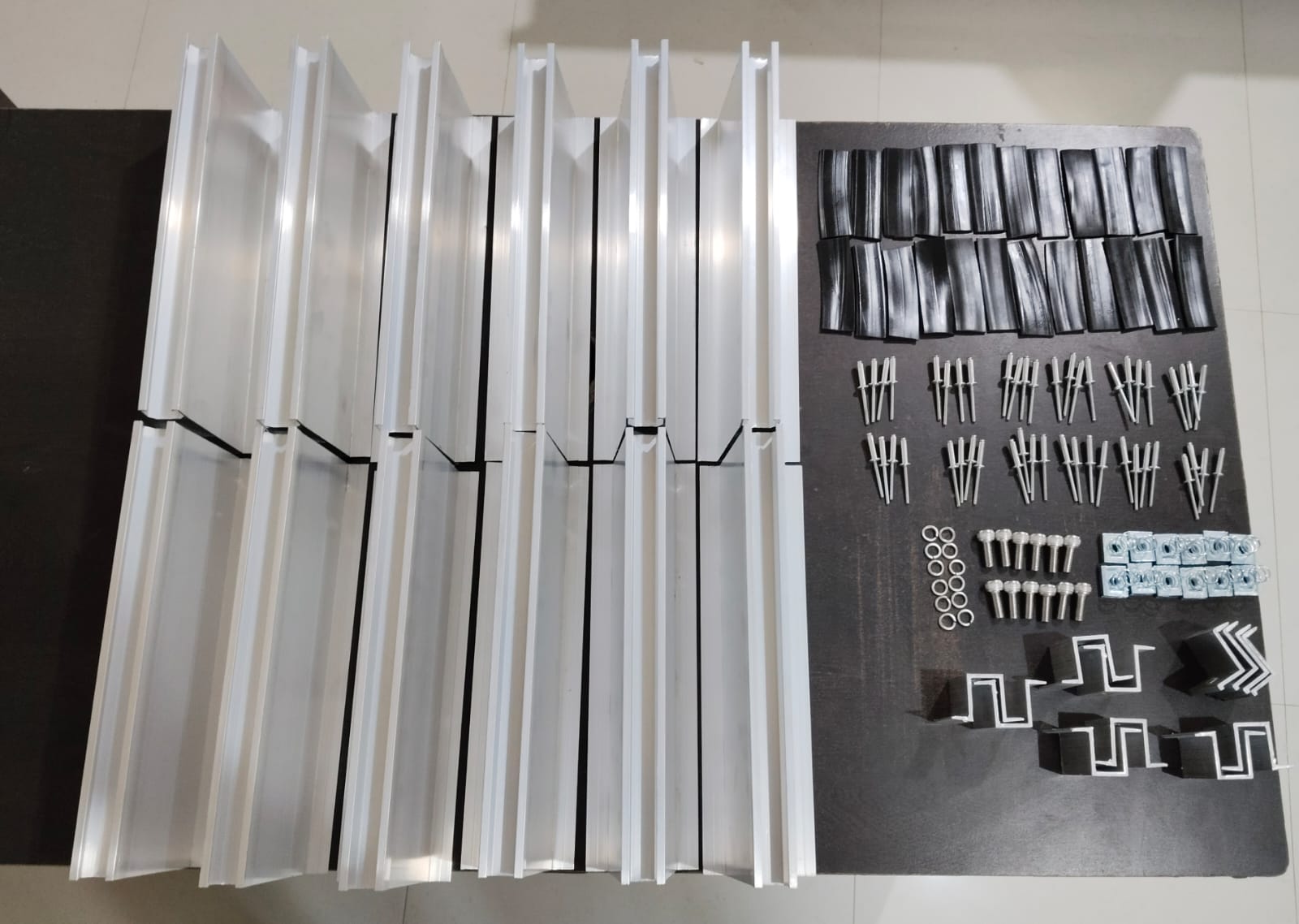

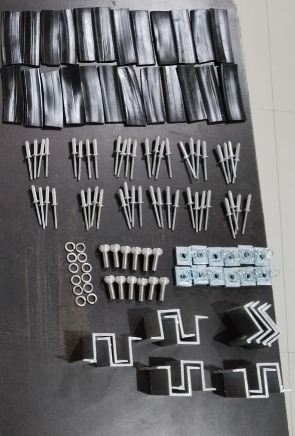

Mounting kit Package includes following products: This kit is suitable for mounting a five panel

12 x aluminum channels 100x300mm
48 x rivits
24 x EPDM rubber
12 x allen bolts 20mm
12 x small spring nuts
4 x 30mm end clamps
8 x 30 mm mid clamps

Steps for TIN roof solar panel mounting.

Step 1: Fix the micro channels on the TIN roof with self-threading screws or bolt-nuts. One micro channel for each corner of the panel.

Video for fitting the panels on TIN roof: https://youtube.com/shorts/TtQrJmqHw2s?si=wZS421E9OiNcxYqk
