Description

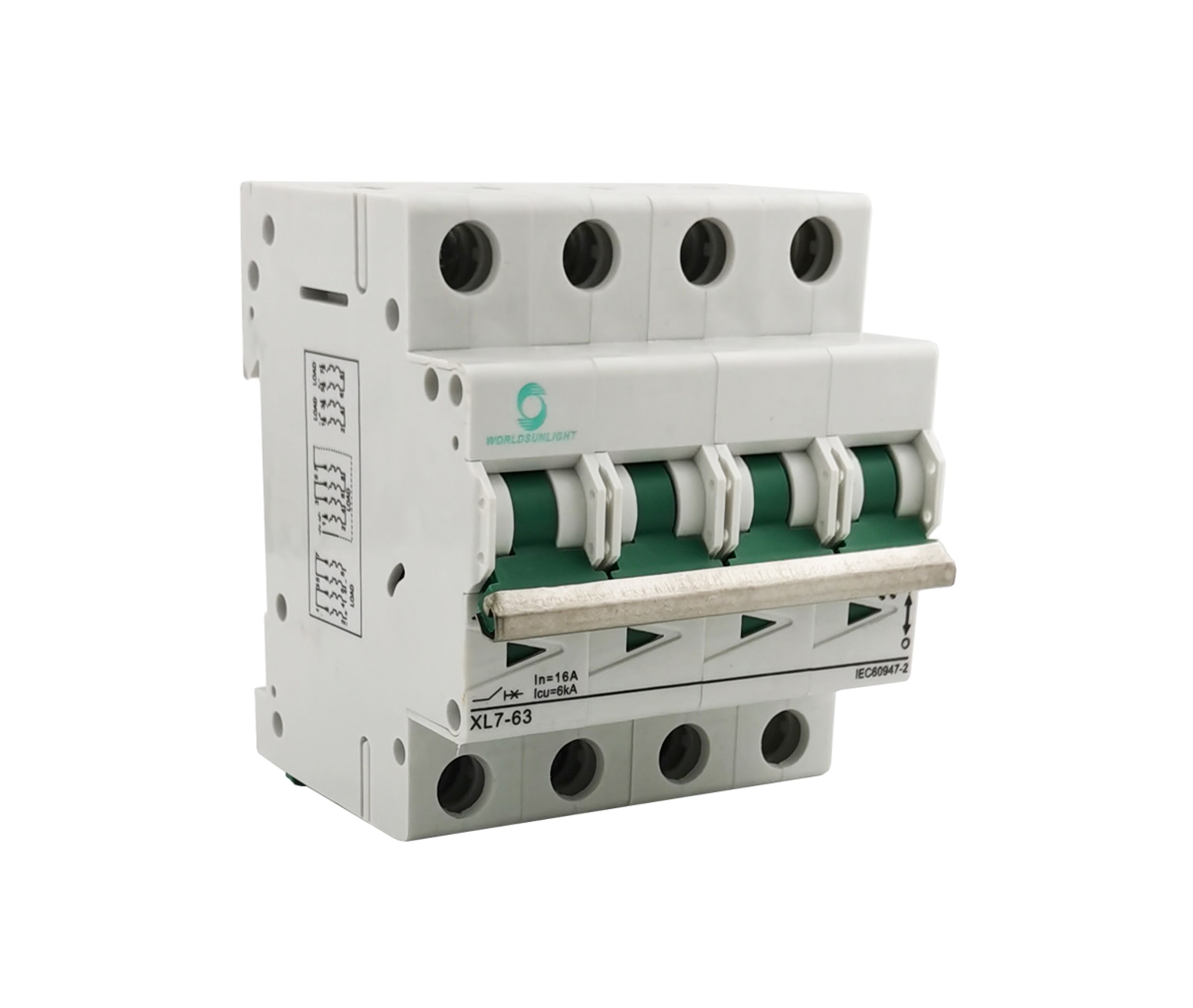

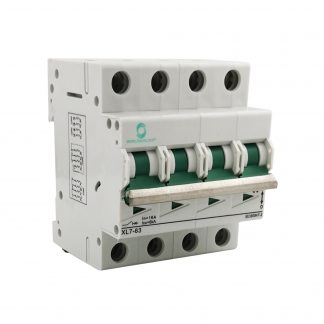

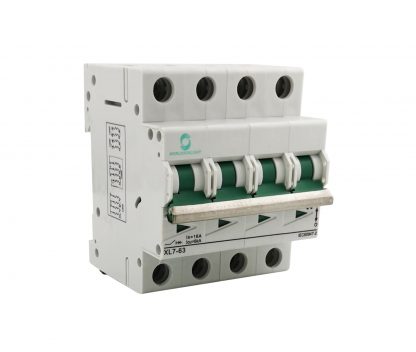

XL7-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage can be up to 1200V. It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
Technical Parameters:
| Item | DC MINI CIRCUIT BREAKER |
| Code | XL7-63 |
| Pole | 4P |
| Voltage | 1000VDC/1200VDC |
| Current | 16/40/63A |
| Standard | IEC60947-2 |
| Breaking Capacity | 6kA |
| Tripping curve | C curve |
| Working Temperature | -25℃to +40℃ |
| Protection Degree | IP20 |
| Quality certificate | CCC CE |
| Mechanical life | With load: 10000 times;without load:20000 times |
| Dimension(W)X(H)X(D) | 72X80X71 mm |
| Installation | 35MM DIN RAIL |
| Accessory | YES |
| Installation Altitude | ≤2000M |
