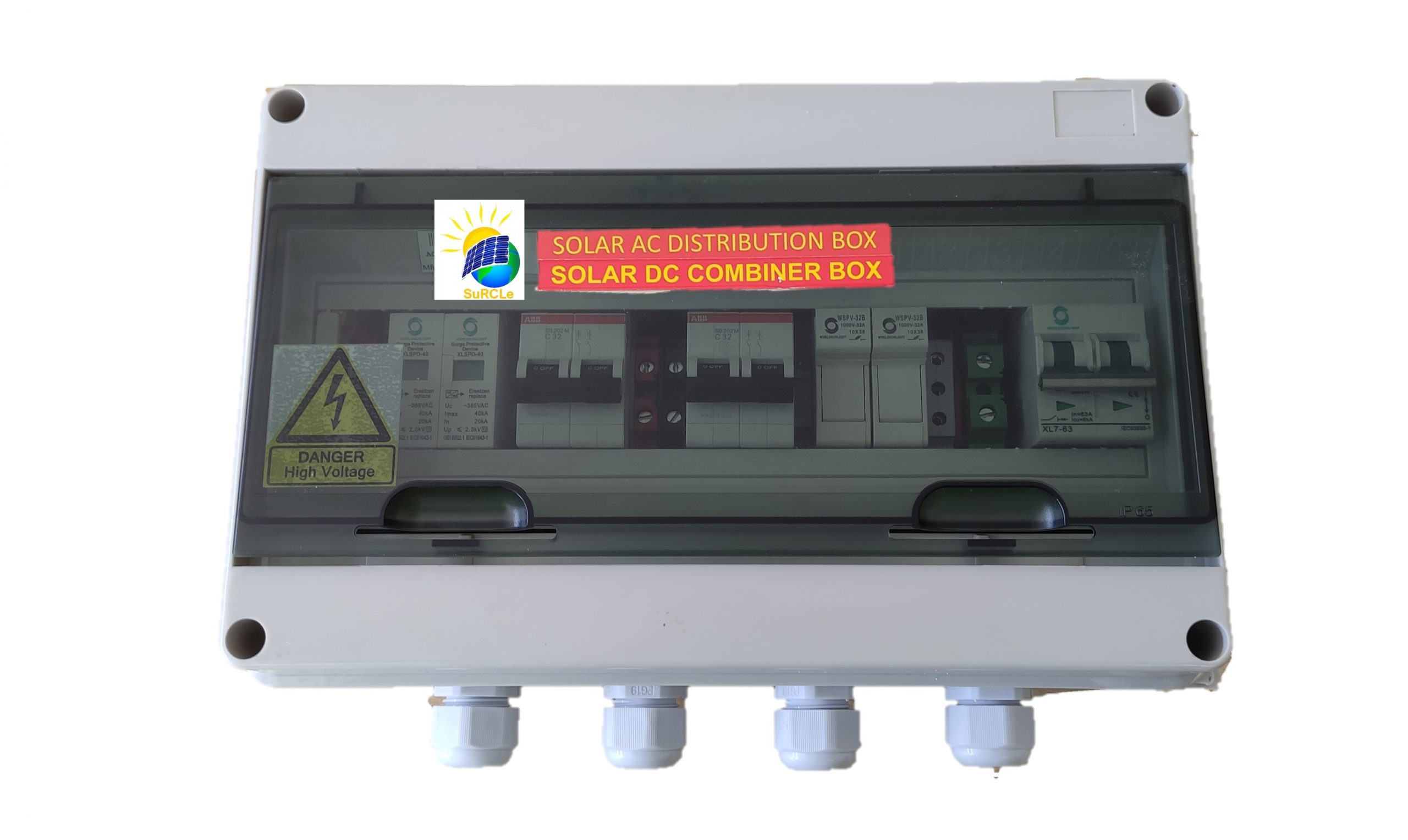

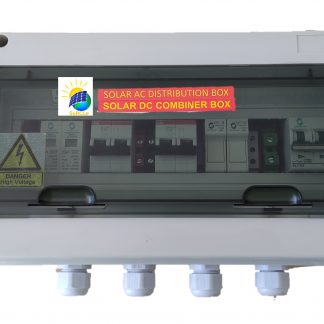

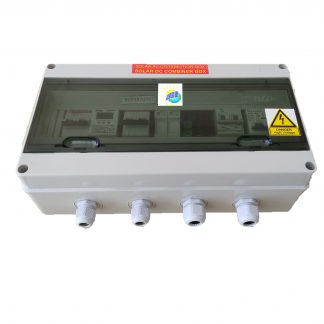

SuRCLe All in One DB for Offgrid 3kW

Description

This all in 1 DB box is suitable for a 3 kw offgrid inverter.

Takes care of AC Grid, Solar DC and Battery DC protection all in a single box.

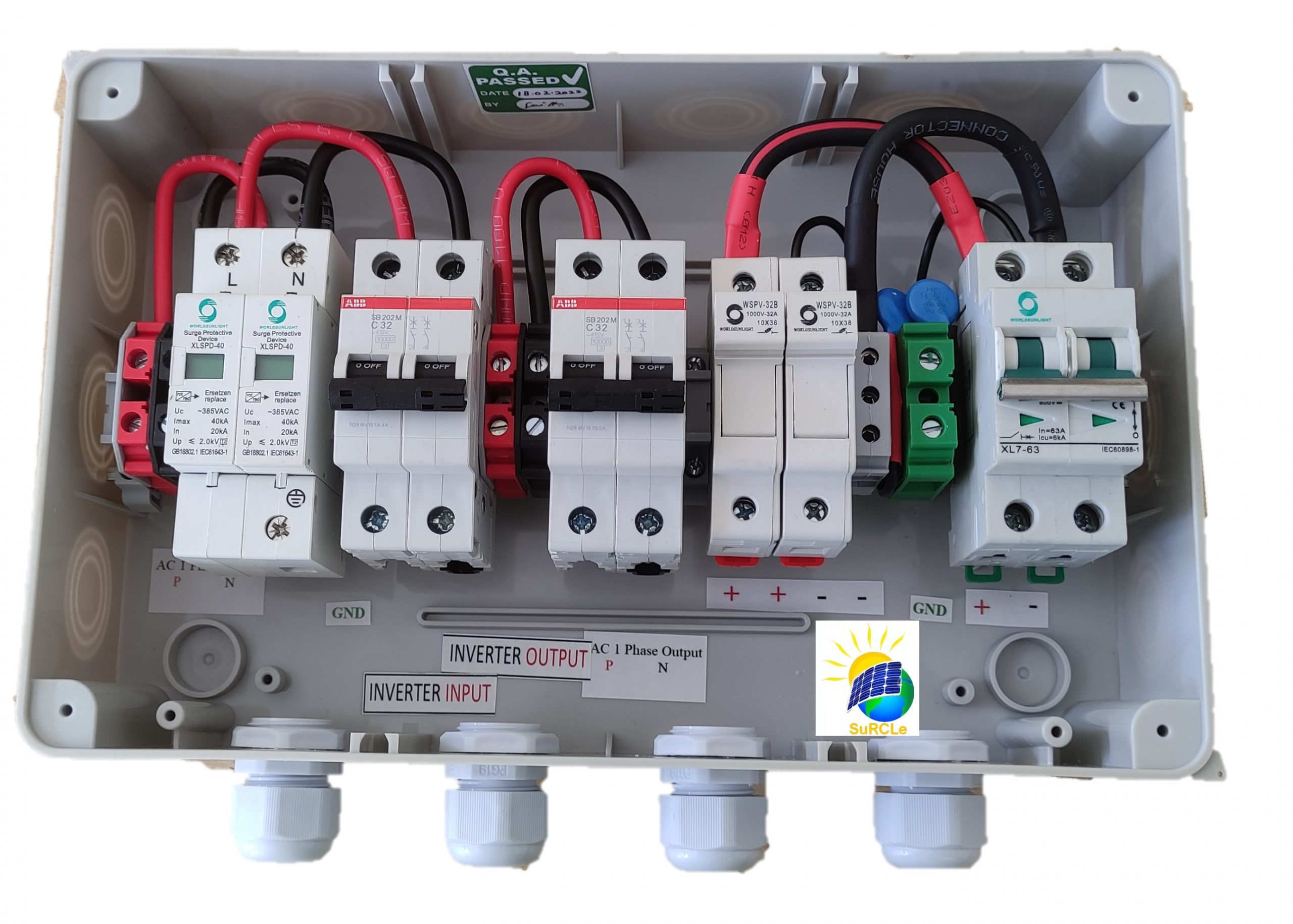

Includes:

1. 3kw ACDB
* Grid AC over current protector with ABB MCB
* Grid AC Surge protection
* Load AC over current protector with ABB MCB

2. 2 in 1 out DCDB
* Surge protection with MOV at 400V
* Over current protection of 15A per string with 1000V 15A Fuse
* Secondary over current protection and switch with 800V 63A MCB
