Luminous NXG1400, 2*165W Solar Solution for Home, Shops – No more power cuts

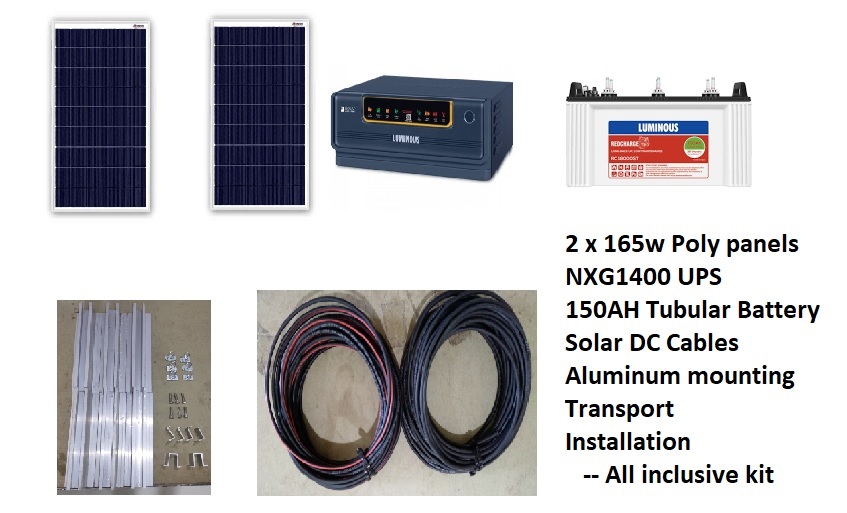

1x NXG+ 1400 Hybrid Inverter,

1 x RC 150Ah tall tubular solar inverter battery

2 x Polycrystalline 165 watts solar panel

1 x MPPT controller

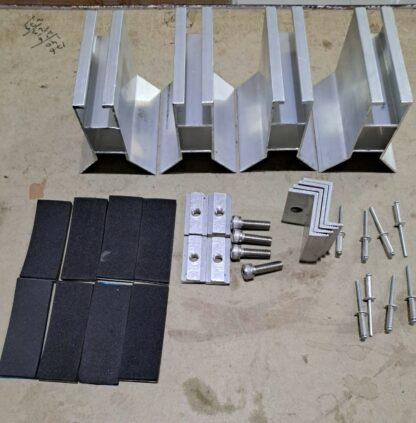

1x aluminum mounting kit for 1 panel

1x connecting cable

Transport inside Bangalore

Installation inside Bangalore

1 in stock

SKU: NXG1400KIT Category:


Load: All LED lights, fans, network, laptops covered.

  • Free transport and Installation inside Bangalore only
  • For sale inside Bangalore only.

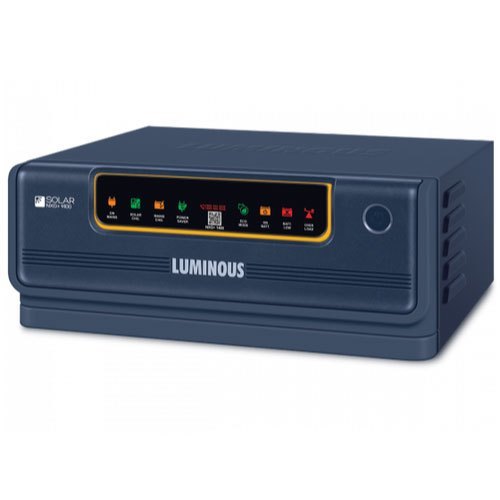

NXG 1400 Solar Hybrid Inverter: Compatible with 1 solar battery of 150Ah, Panel Requirement: 165 Wp x 2 Nos.; PWM controller.

Rooftop Area Requirement: 20 Sq. Ft. (approx.)

Inverter Type: Pure Sine Wave solar hybrid Inverter with 80% efficiency and in-built PWM charge controller. You can add up to 1000w of solar panels.

Technology: Power savings of 1 units per day with the help of Intelligent Solar Optimization Technique (ISOT), fast battery charging through i-Charge technology; Dimensions: 375 mm x 315 mm x 135 mm; Weight: 12.70 Kgs

RC18000 150Ah Battery: Tall Tubular technology that provides many years of service. Nominal Voltage: 12V; C10 up to 10.5V at 27oC: 150 Ah; Electrolyte Volume: 20.6 Liter. Dimensions of the container (L x W x H): 502mm x 191mm x 440 mm; [Battery Weight] Dry Battery: 34.5 kg; Filled Battery: 60 Kg

Polycrystalline 165 watts solar panel – Innovative solar panels are BIS certified as per IS/IEC standards;

Space Requirement – 20 sq. feet (approx.) for the single panel; Cables & Connectors – 1000mm length meter wire for a reliable connection

Durable – Designed using a silver anodized high-tech aluminum frame that withstands higher wind and snow loads up to 5400 Pa (IEC) which allows the panels to last for decades

Technology – Equipped with high-performance Grade A solar cells with PID-resistant technology. The Grade A silicone cells come integrated with a powerful reflector that redirects sunlight back from the cell. This technology leads to the generation of up to 5% more power

Performance – Open-Circuit voltage (Voc): 22.84 Volt, optimum operating current (Imp): 8.85 Amps, short-circuit current (Isc): 9.55 Amps, Module efficiency: 16.64%

Additional information

Weight 60 kg
